Deploying Edge SWG Virtual Appliance on Azure

1. Download the Installation Package

From the Broadcom support portal, download the Edge SWG Azure installation package.

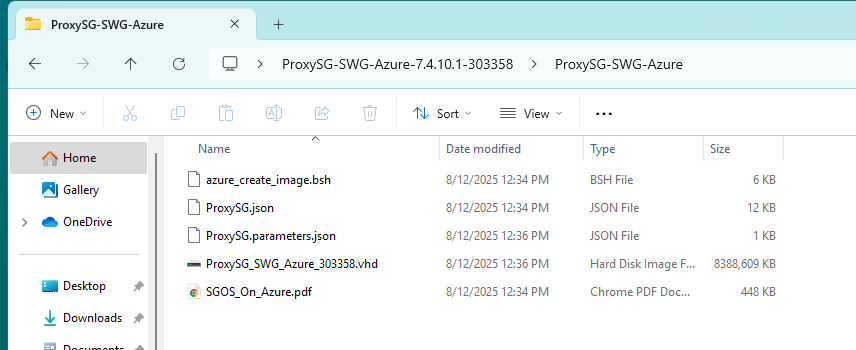

This package includes:

• The VHD file (e.g., ProxySG_SWG_Azure_****.vhd)
• The azure_create_image.bsh script
• The official installation instructions

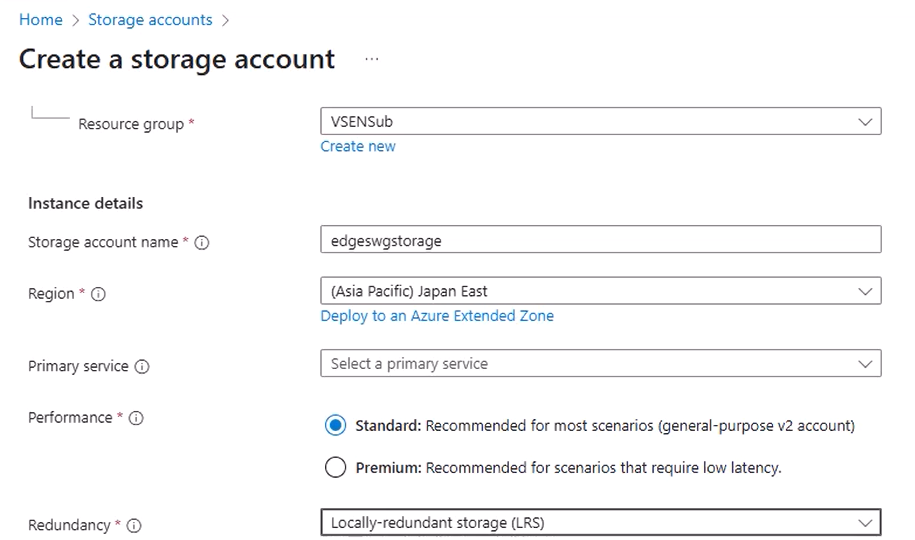

2. Create a Storage Account in Azure

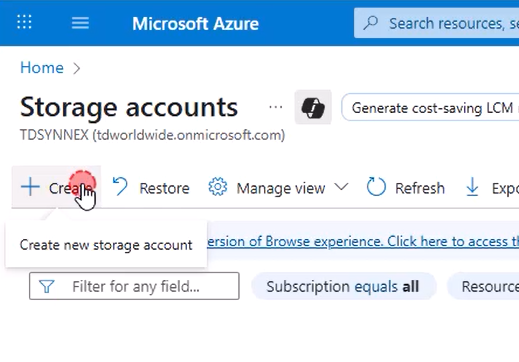

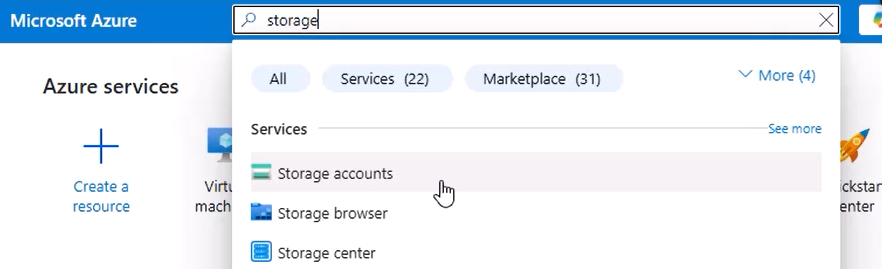

• In the Azure Portal, search for Storage Accounts and click + Create.

• In the Azure Portal, search for Storage Accounts and click + Create.
• Enter a Storage account name (letters/numbers only — no hyphens or special characters).
• If you do not have a Resource Group yet, create one.
• Region: Select an appropriate region — note that prices vary, and cross-region transfers may incur extra costs.
• Performance/Redundancy: Choose defaults unless you have specific requirements.

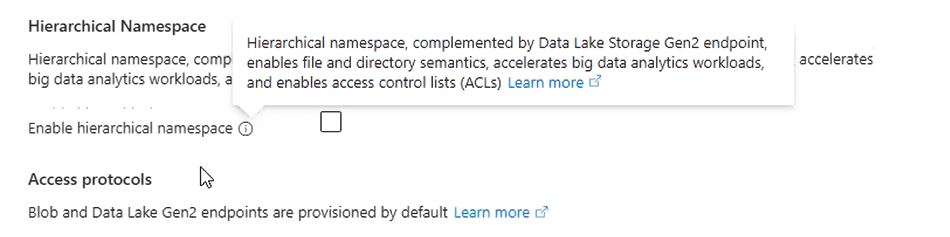

• Ensure Hierarchical namespace is disabled.

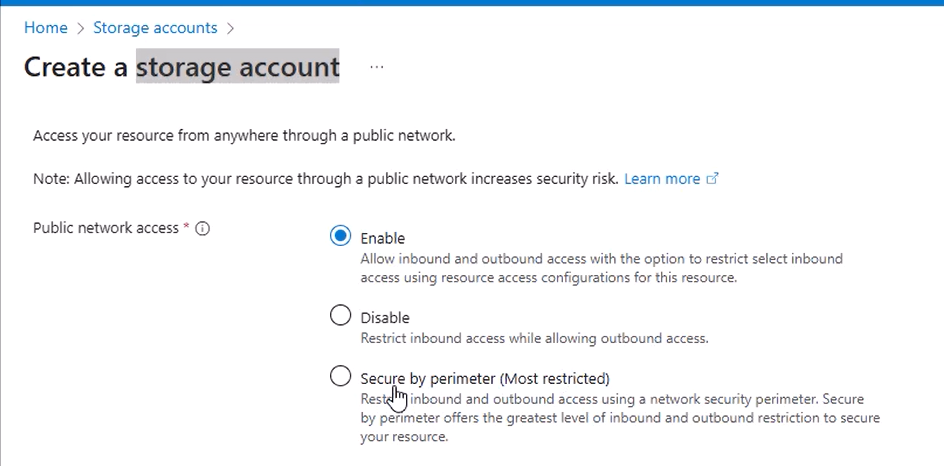

• Ensure Public network access is enabled (required for upload).

Click Review + Create, then Create. Deployment takes a few minutes.

3. Create a Container and Upload the VHD

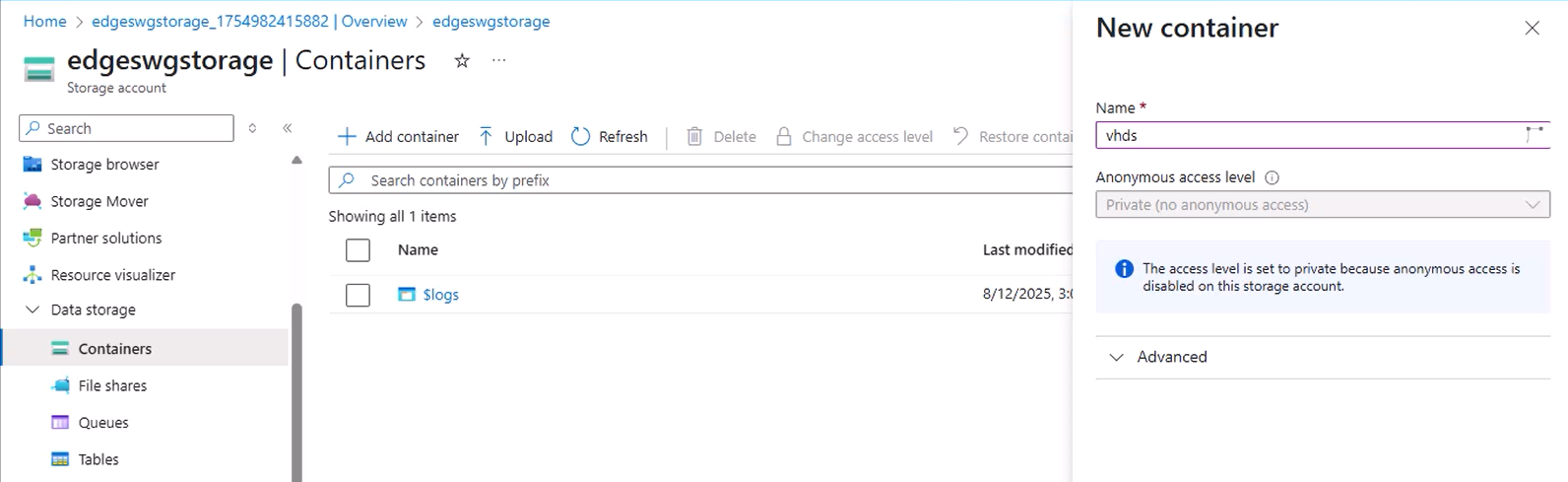

• Go to your new Storage Account → Containers → + Container.
• Give it a name (e.g., vhds) and create it.

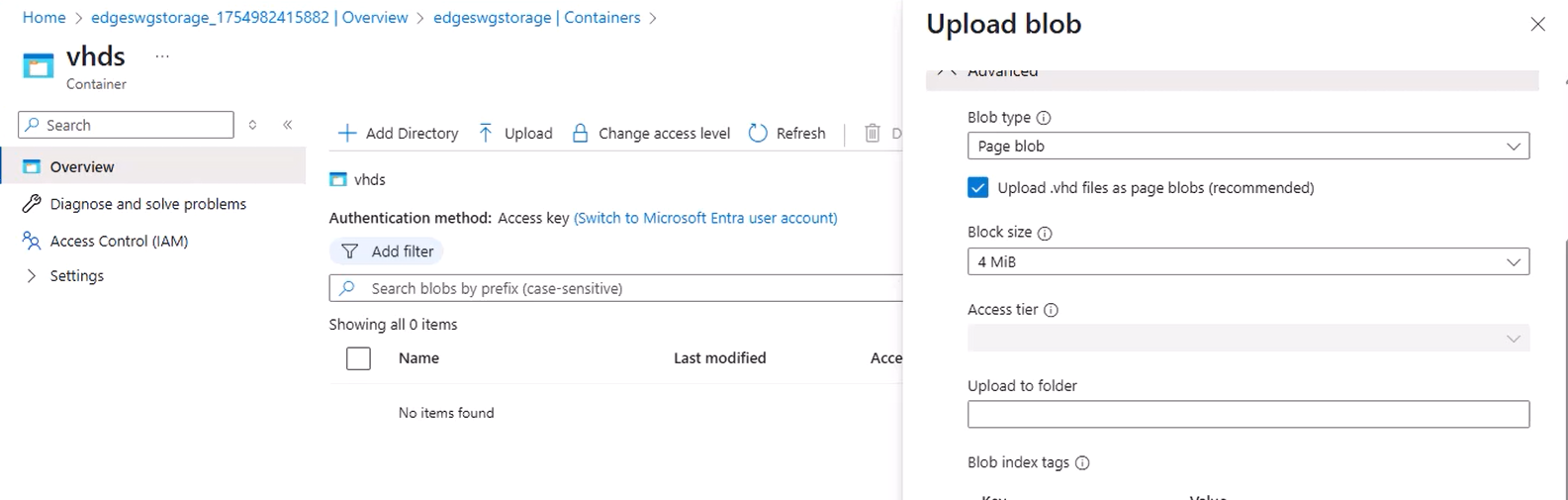

• Inside the container, click Upload.
• Select your ProxySG_SWG_Azure_****.vhd file from the installation package.
• Important: Set Blob type to Page blob — Azure requires page blobs for OS disks.
• Click Upload and wait for completion.

4. Prepare Azure Cloud Shell

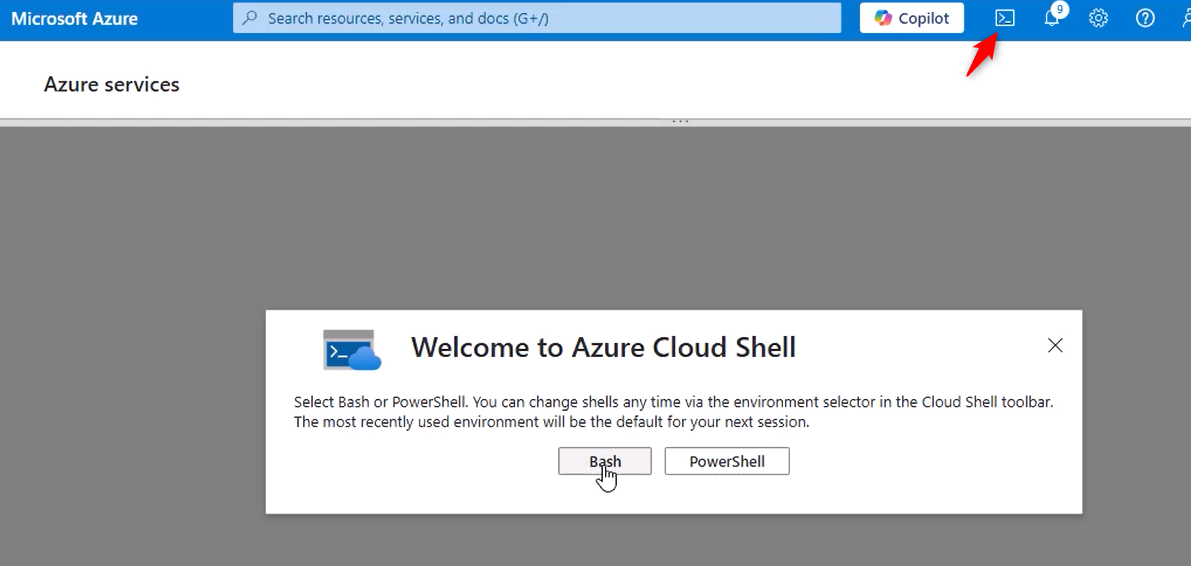

• In the Portal’s top navigation bar, click the Cloud Shell icon.
• If this is your first time, follow the Getting Started setup:
  • Choose Bash.

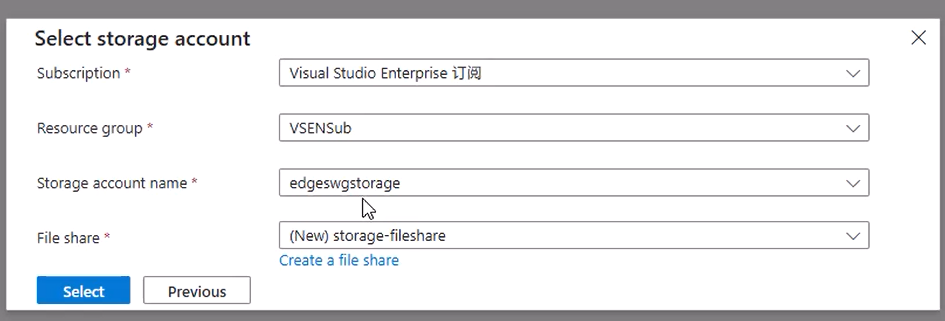

• When prompted for storage, select the Storage Account you just created.
• Once initialized, you will see a shell prompt.

5. Upload and Run the Deployment Script

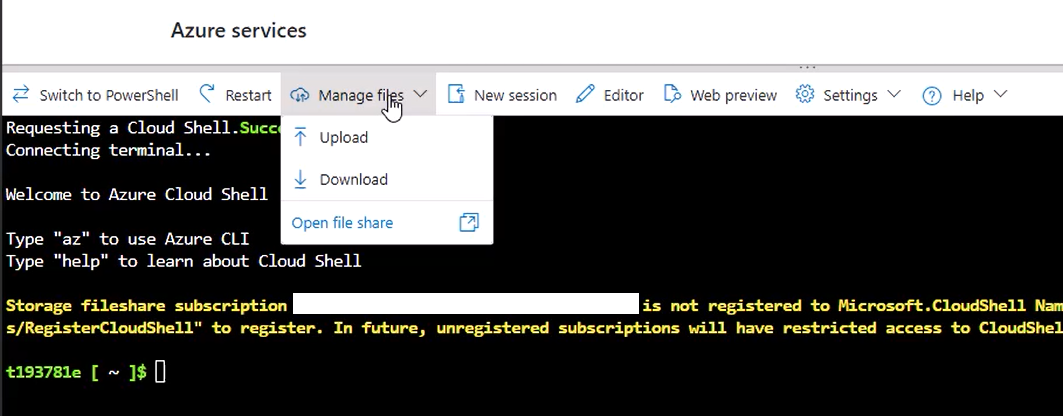

• In Cloud Shell, upload the azure_create_image.bsh script from the installation package.
• Use the Upload/Download files button in the Cloud Shell toolbar.

• Make it executable: bash chmod +x azure_create_image.bsh

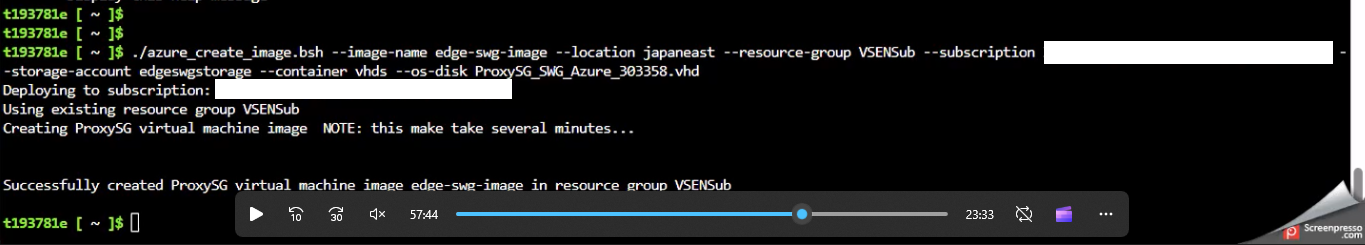

• Run the script with the following format:

./azure_create_image.bsh \ --image-name <va-image-name> \ --location <resource-group-location> \ --resource-group <resource-group-name> \ --subscription <subscription-id> \ --storage-account <storage-account-name> \ --container <container-name> \ --os-disk <os-disk-name>

Parameter details:

• --image-name : Name for the Managed Image (e.g., edge-swg-img).
• --location : Azure region (must match Resource Group’s region).
• --resource-group : Resource Group name.
• --subscription : Subscription ID (find under Subscriptions in Portal).
• --storage-account : Your Storage Account name.
• --container : The container holding the VHD.
• --os-disk : The VHD file name inside the container.

6. Create the Virtual Machine

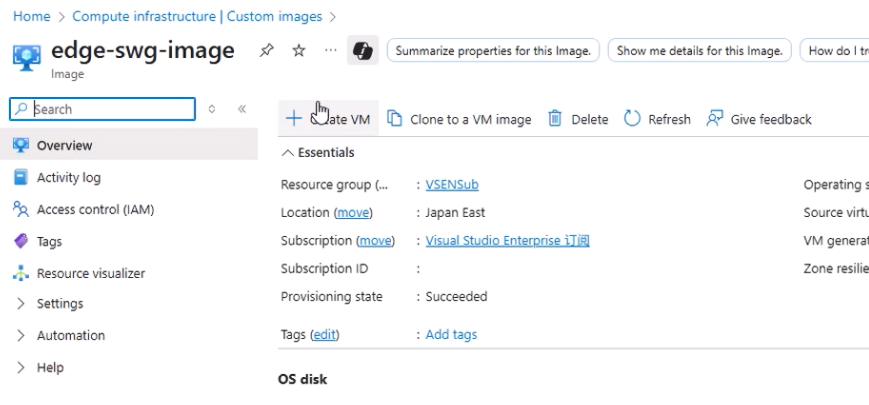

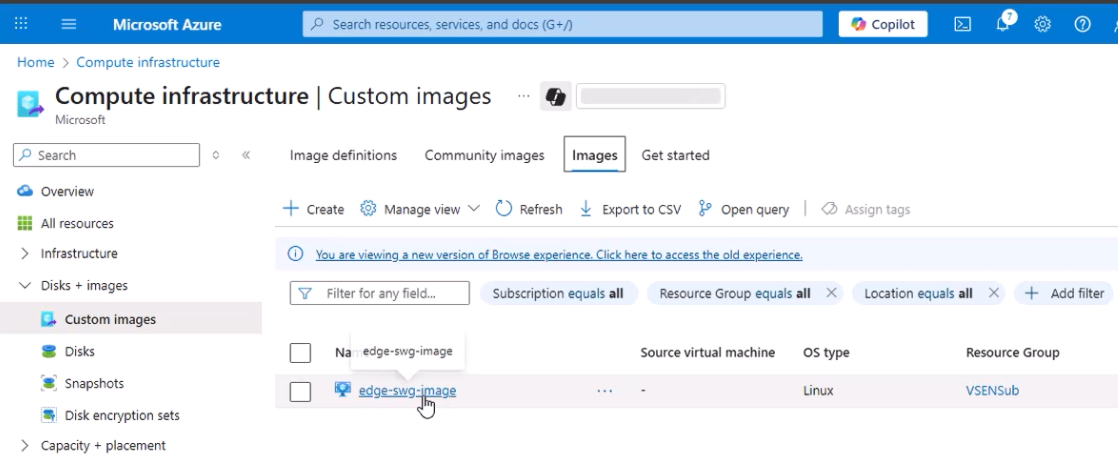

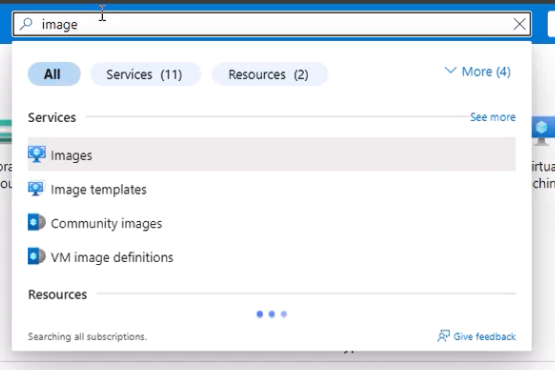

• Go to Images in the Azure Portal and select the image created by the script.

• Click + Create VM.

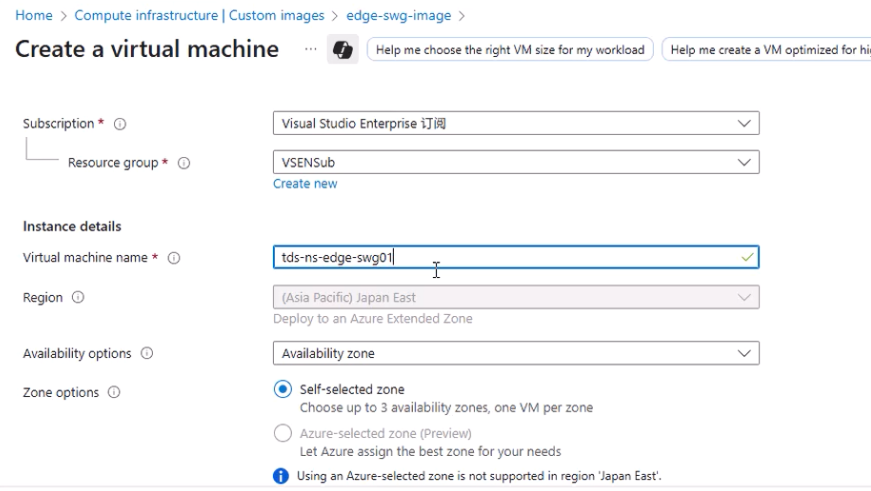

• Basics:
• VM name (e.g., edge-swg-01)
• Region will be pre-selected (from image)

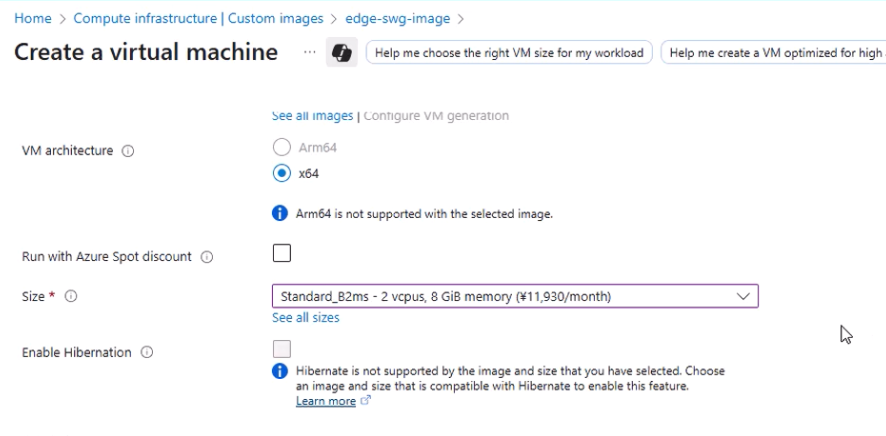

• Size: Minimum 2 vCPUs, 8 GB RAM. In this example: B2ms

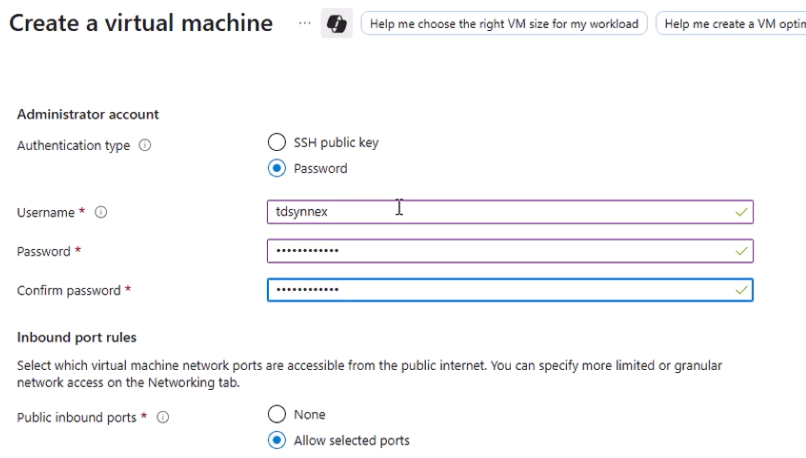

• Authentication:
• Choose SSH public key or Password (password used in this guide).

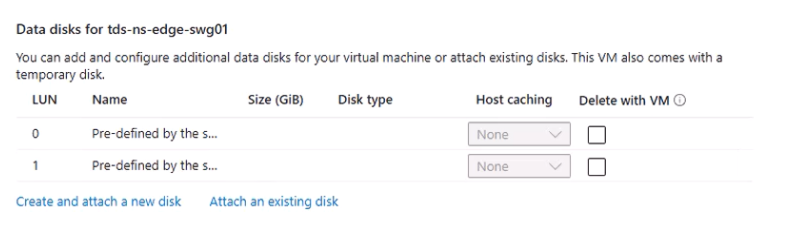

Disks:

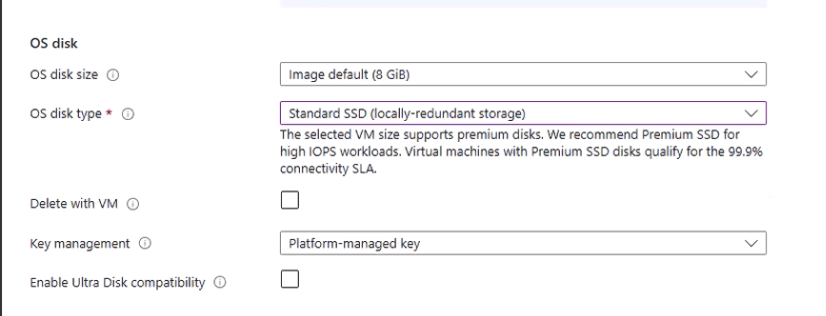

• The OS disk is preconfigured.

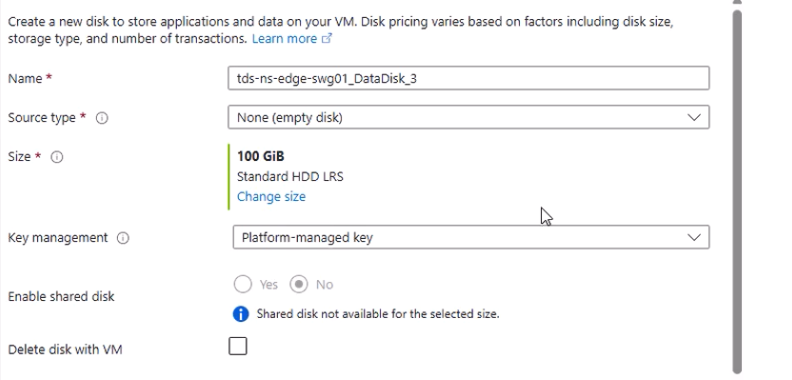

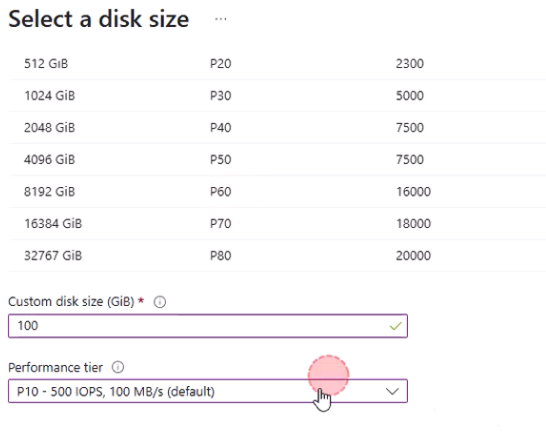

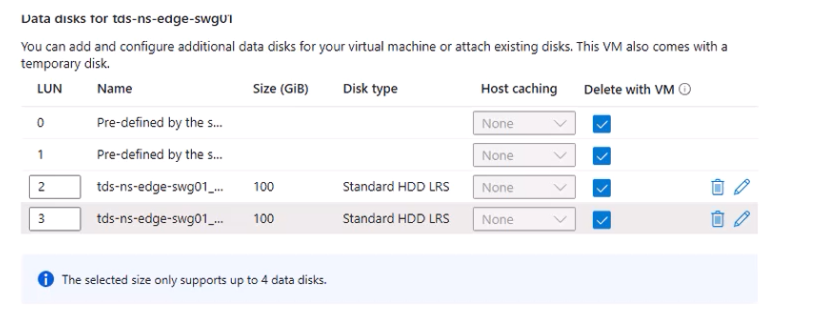

• Add two additional 100 GB data disks (HDD to save costs).

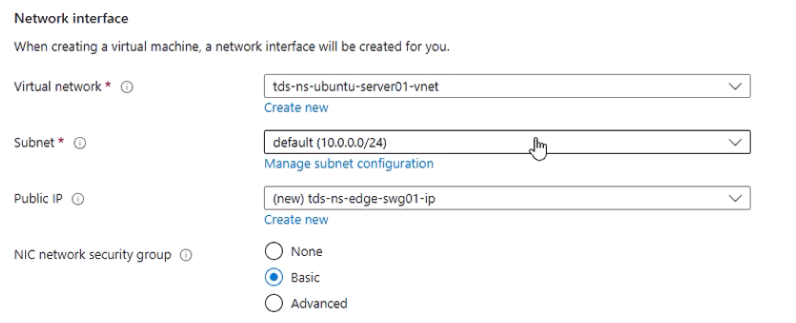

• Networking:
• Attach to your target VNet and Subnet.
• Initially add a Public IP for configuration convenience (you can remove it later).

• Click Review + Create → Create. Deployment takes several minutes.

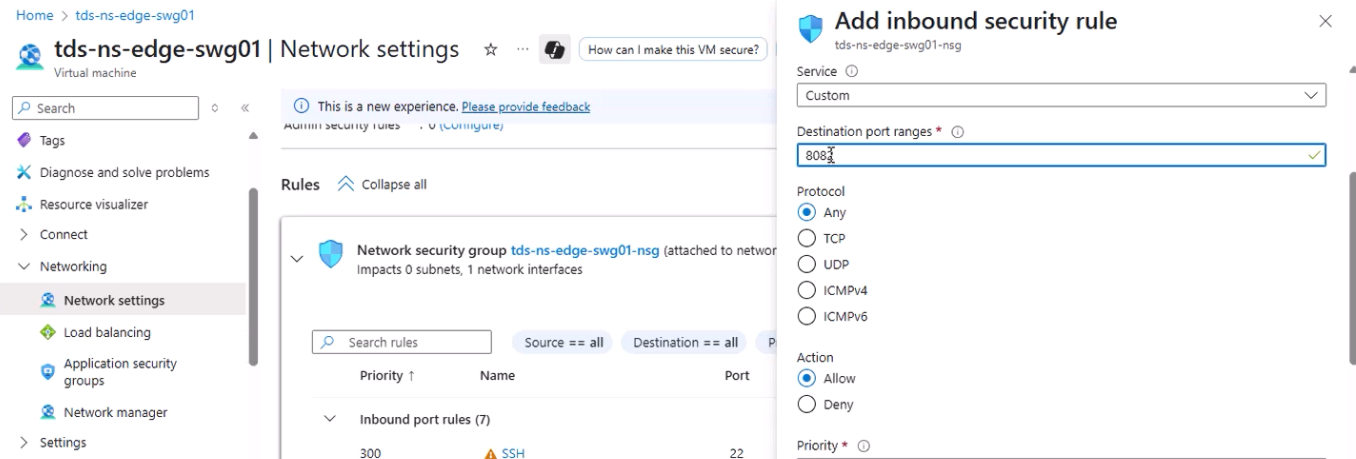

7. Configure Network Security Rules

• Go to the newly created VM → Networking.

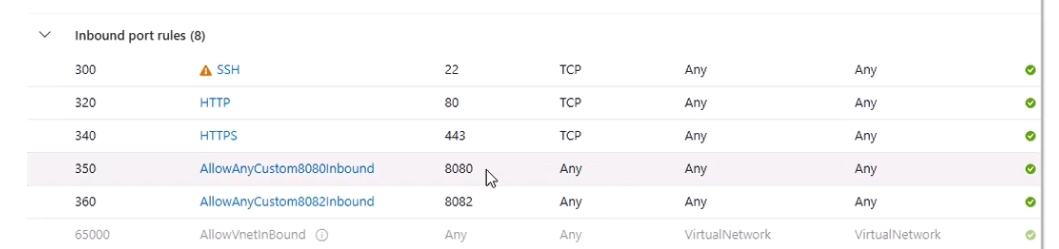

• Edit the Network Security Group (NSG) to allow:
• TCP 22 (SSH)
• TCP 8080 (Proxy)
• TCP 8082 (HTTPS management console)

8. Initial Appliance Setup

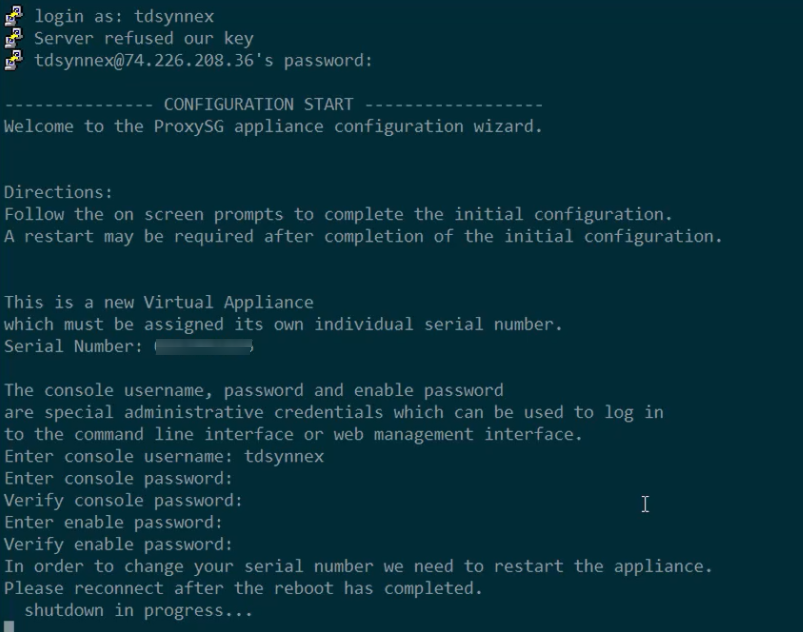

• SSH into the VM using the Public IP and the credentials you configured.
• Complete the initial Edge SWG configuration in the CLI.
• Reboot the appliance.

9. Access the Web Management Console

• In a browser, go to:

https://<VA_IP>:8082

• Log in with the credentials you set.

10. Install the License

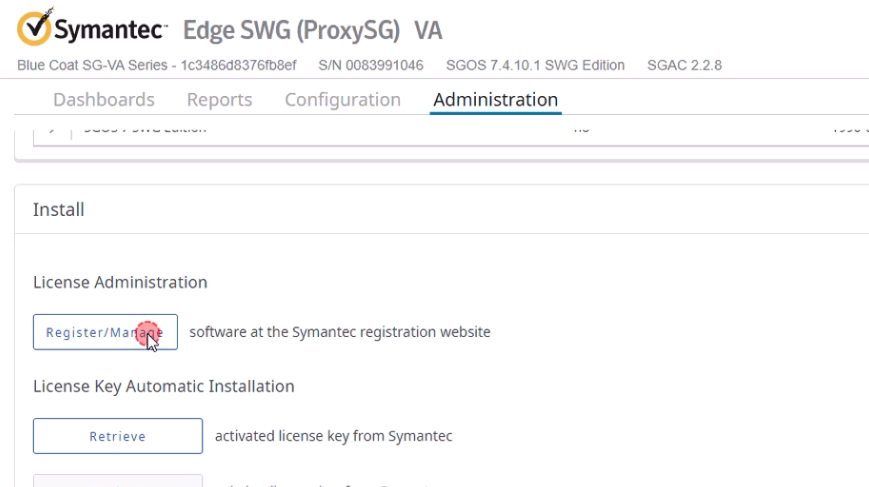

1. Navigate to Maintenance → Licensing in the web console.
2. Click Retrieve or Install License.
3. Log in with your Broadcom Support account to download and apply the license.

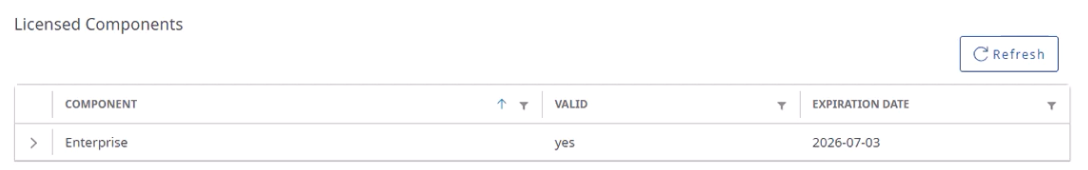

Refresh the page and confirm the license status is active.

11. Post-Deployment Notes

• Remove Public IP if not needed.
• Restrict NSG rules to trusted IPs.
